Cisco Inter-VLAN Routing (Router-on-a-stick)

Mohammed Waseem
Jan 22, 2023

--

CCNA 200–301

Requirements

  1. Router for routing purposes

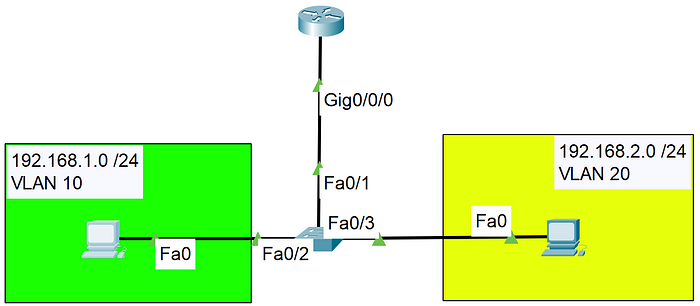

  2. Switch with multiple VLANs
  3. End hosts in each VLAN to test routing

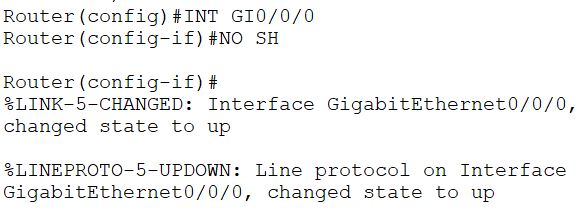

First, enable the router interface link to up

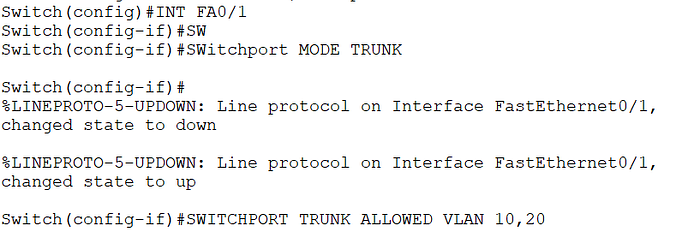

Then change the interface mode to trunk and enter the allowed VLANs which will be created later

Create VLANs and name them

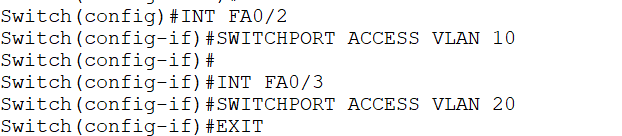

Assign VLANs to the respective interfaces

Verify interfaces & VLANs are correctly assigned

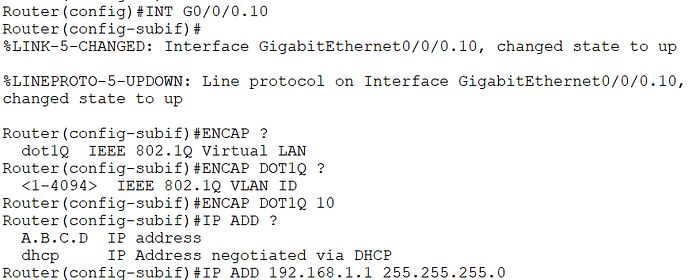

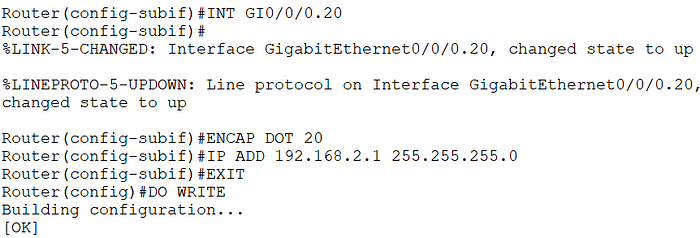

Create a sub-interface for VLAN 10 and 20 and assign the gateway IP of each network, respectively.

PCs should be able to ping each other now
